PCB Terminal Blocks and Pluggable Connectors for Power Electronics
For power electronics, WAGO’s range contains two families of PCB terminal blocks and a pluggable connector system for cross sections up to 25 mm2 and nominal current up to 76 A.
- Home
- Wago
- Wago Products
- Electrical Interconnections
- PCB Terminal Blocks and Connectors
- PCB Terminal Blocks and Pluggable Connectors for Power Electronics
These compact and high-performance PCB terminal blocks – with or without levers – are easy to use and also offer maximum wiring flexibility. The MCS MAXI 16 Pluggable Connector System is also the world’s first pluggable connector with a lever for power electronics.
Advantage
- Comprehensive product range
- Easy conductor termination via Push-in CAGE CLAMP® connection technology
- Wider conductor range and higher current carrying capacity
- Save money and space by using compact terminal blocks for large cross sections and high currents
- Connect conductors both horizontally and vertically to the PCB
- Testing both parallel and perpendicular to conductor entry
- Wide range of uses in various industries and applications

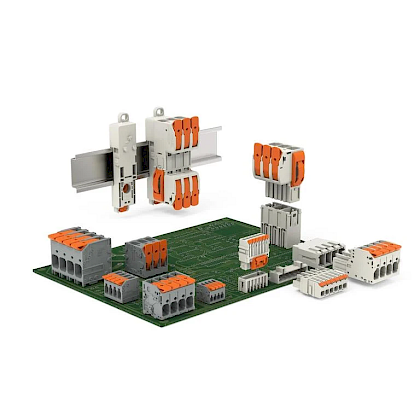

WAGO PCB Terminal Blocks and WAGO Pluggable PCB Connectors for Power Electronics
More Power on Your PCB
The trend toward downsized components presents new challenges for power electronics. The increased performance density brought about by combining the signal and output layer on the PCB also impacts connection systems. PCB terminal blocks and pluggable PCB connectors must be compact to reliably transmit currents while simultaneously functioning flawlessly with the PCB under demanding conditions.
Your Benefits
- Comprehensive product line-up, ranging from 0.2 to 25 mm2 (24–4 AWG)
- Push-in CAGE CLAMP® termination
- Wider conductor range and higher current carrying capacity
- Connect conductors both horizontally and vertically to the PCB
- Testing both parallel and perpendicular to conductor entry
PCB Terminal Blocks with Push-in CAGE CLAMP®
WAGO's PCB terminal blocks with Push-in CAGE CLAMP® (2624, 2626 and 2636 Series) are the ideal choice for connecting compact devices in space-restricted or panel feedthrough/through-panel mounting applications. Tool-actuated termination is performed parallel to conductor entry. This enables the PCB terminal blocks to be used easily, even with a high density of components on the PCB. Conductors can also be connected parallel or perpendicular to the PCB. Therefore, testing can be performed parallel or perpendicular to conductor entry. Integrated Push-in CAGE-CLAMP® Connection Technology enables both solid conductors and fine-stranded conductors with ferrules to be connected by simply pushing them into the unit.
Your Benefits:
- Compact device connection
- Ideal for panel feedthrough and space-restricted applications
- Operation parallel to conductor entry
- Compatibility with existing industrial solutions
- For applications complying with EN and UL 61800-5-1 (details upon request)
MCS MAXI 6
WAGO’s new MCS MAXI 6 Pluggable Connection System extends the power electronics family with levers. Accommodating conductors ranging from 0.5 to 10 mm2 (20–8 AWG), the MCS MAXI 6 Connectors have increased current carrying capacity, making them ideal for higher current requirements. Their intuitive levers allow conductors to be wired directly in-hand. MCS MAXI 6 is available with 7.62 mm (0.3 inch) pin spacing.
Your Benefits:
- Easy in-hand wiring via lever actuation
- Tool-free, intuitive lever operation
- Push-in CAGE CLAMP® termination
- Wider conductor range and higher current carrying capacity
- Wire-to-board and wire-to-wire connections
- 100% protected against mismating
- Based on UL 1059, both standard headers and female connectors can handle up to 600 V
- Mechanically reinforced via optional strain relief plates
MCS MAXI 16
The pluggable connection system with lever for power electronics, the only one of its kind in the world: The MCS MAXI 16 Pluggable Connection System with its innovative lever is ideally suited for your power electronics with a conductor cross-section range of 0.75 to 25 mm2 (18–4 AWG). MCS MAXI 16 is available with 10.16 mm (0.4 inch) pin spacing.
Your Benefits:
- Easy in-hand wiring via lever actuation
- Tool-free, intuitive lever operation
- Wider conductor range and higher current carrying capacity
- 100% protected against mismating
- Push-in CAGE CLAMP® termination of both solid conductors and fine-stranded conductors with ferrules
- Wire-to-board and wire-to-wire connections
- Coding and locking options available
Products
Get Connected Reliably with WAGO's PCB Terminal Blocks and Pluggable Connectors
PCB Terminal Blocks
WAGO offers a comprehensive range of PCB terminal blocks for conductors ranging from 0.08 to 16 mm2 (28–6 AWG) to connect PCBs to your device environment. With metric or inch pin spacing from 2.5 to 20 mm (0.098–0.787 inch), WAGO has the right solution for your application.
Pluggable PCB Connectors
Always find the right solution for your application with WAGO’s wide range of pluggable connectors. WAGO’s pluggable PCB connectors are available for conductors ranging from 0.08 to 10 mm2 (28–8 AWG), meeting all requirements for consistent, end-to-end system wiring.
picoMAX®: The Pluggable Connection System
One Cr-Ni-steel spring, double the contact force applied: This principle makes picoMAX® up to 30 percent more compact than other connection systems.
