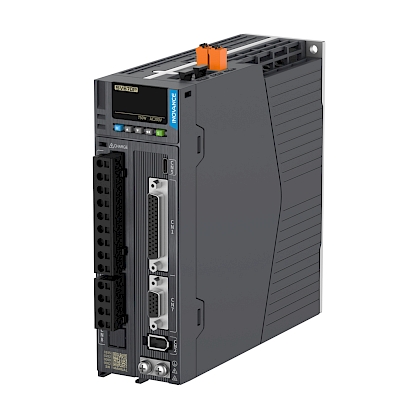

SV670P
Performance, enhanced functionality, and flexibility: the SV670P - Single-Axis Pulse Servo Drive
- User friendly installation
- Easy set-up and tuning
- CANopen (C) and CANlink (A) variants also available
- Safe Torque Off - SIL 3
- 1/3 ph 200 V, 3 ph 400 V
- 0.1 kW to 7.5 kW
- Ultra-fast 4.5 kHz current loop
- Feedback encoder interface: serial (Weton), Nikon and Tamagawa
- Second encoder interface: incremental quadrature
- +24 VDC backup control supply variant available
SV670P Brochures and Information Materials
Products
Inovance’s servo drives offer an extensive range of specifications along with reliability, high performance, powerful functionality, easy commissioning, and a wide power range of 0.05-110 kW. Meanwhile, our servo motors offer a compact design, quiet running modes and high performance
SV660N Servo Drives
High dynamic performance with a compact footprint: the SV660N servo solution for industrial automation applications
SV660P Servo Drives
Single - Axis Pulse Servo Drive: performance and flexibility in a compact footprint
SV660F Servo Drives
High dynamic performance with a compact footprint: the SV660F servo solution for industrial automation applications.
MS1 Series Servo Motors
The highly dynamic MS1 servo motor range has a wide variety of power ratings, as well as flange and brake options.
IS810N Servo Drives
Multi-axes servo drive platform - for maximum performance in the most demanding applications
ISMG Series Servo Motors
Servo motor designed for energy saving servo pump applications
