Product Description

The Telecontrol package allows to use the CODESYS PLC as IEC 60870-5-104 server. All relevant features of the IEC 60870-5-104 protocol are implemented:

See the interoperability list below
Library written in IEC61131-3
Configurator as CODESYS PlugIn

Range of Functions

Support of information objects of this following groups:
- Monitoring direction: SP, DP, ST, BO, ME, IT
- Control direction: SC, DC, RC, SE, BO
  For protocoll detailed functionality, see the interoperability list.

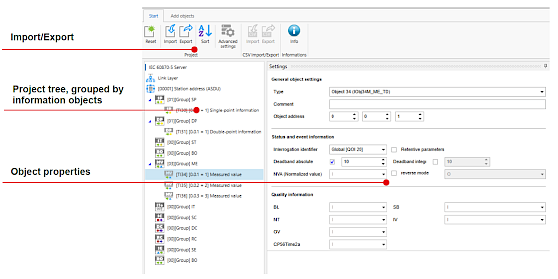

Telecontrol configurator properties

Note

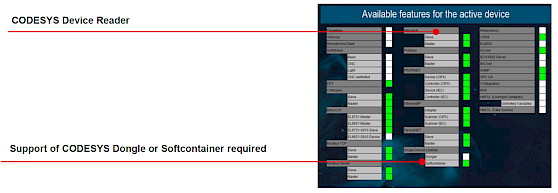

Check the licensing options of your controller with the free CODESYS Device Reader.

Requirements

Programming System	CODESYS Development System V3.5.16.0
Target System	CODESYS Control V3.5.16.0
Supported Platforms / Devices	CODESYS Runtime SL Systems Notice: Use the project ‘Device Reader’ to find out the supported features of your device. ‘Device Reader’ is available for free in the CODESYS Store.
Additional Requirements	none
Restrictions	CODESYS Redundancy SL is not supported
Licensing	Single Device License: The license can be used on the target device/PLC on which the CODESYS Runtime System SL is installed. Licenses are activated on a software-based license container (soft container), which is permanently connected to the controller. Alternatively, the license can be stored on a CODESYS Key (USB-Dongle). By replugging the CODESYS Key, the license can be used on any other controller. Note: In demo mode, the software runs half an hour without a license. After that, the server will be stopped.
Required Accessory	CODESYS Runtime Key or SoftContainer
