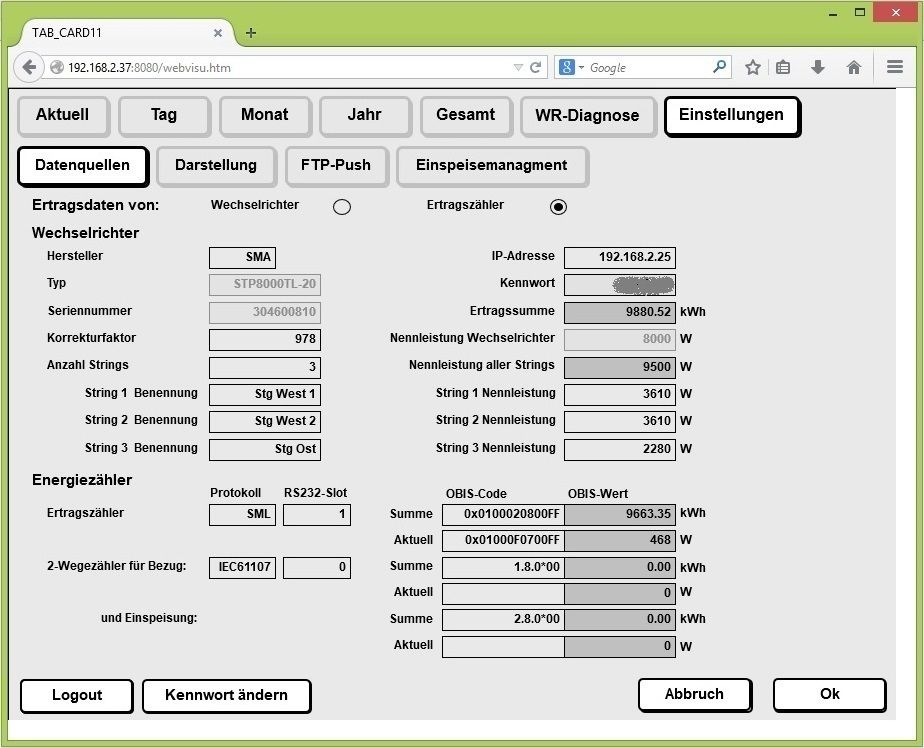

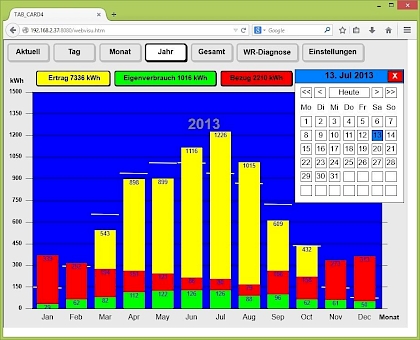

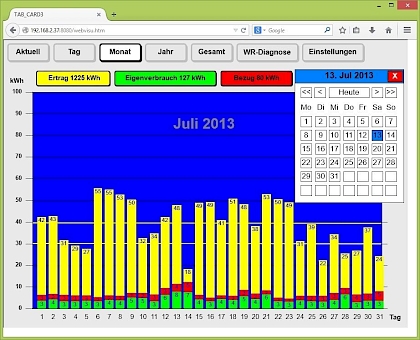

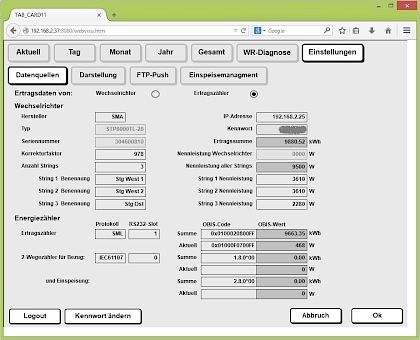

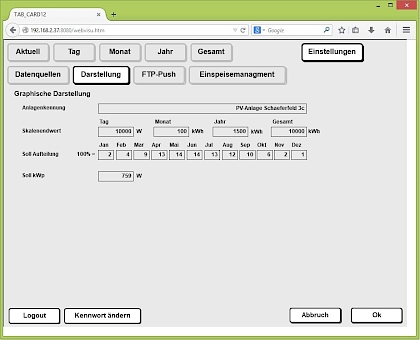

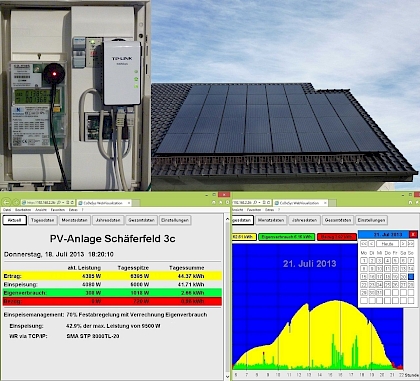

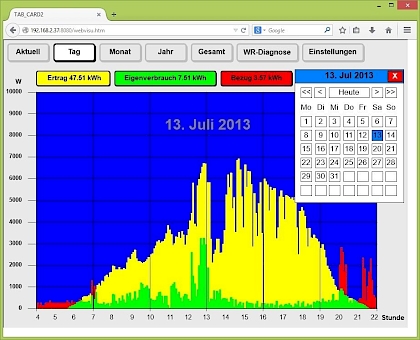

This application monitors the electrical energy balance of a residential building with income of a PV-Plant, own consumption and purchase energy. In addition to the system status several views for the day, month, year and overall summary are shown by CODESYS WEB visualization. The measurement of the electrical income is made by an optical scanning head connected to the electric meter by D0-Interface (SML or IEC 61107). The feed-in energy and the purchase energy is measured in the same manner but at the two-way meter. When using SMA inverters the electrical income alternatively can be read with SMA Speedwire via the Ethernet interface.

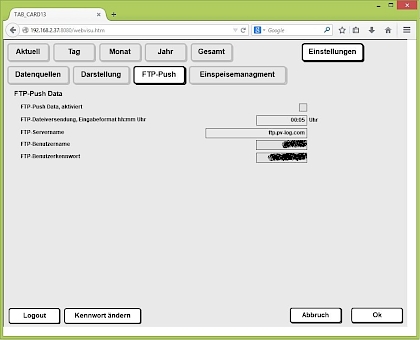

The data are stored on the SD-Card of the PLC and can be transmitted by FTP-Push to anywhere. The documentation and the software GUI is in German language only!

Requirements

Programming system	CODESYS Development System Version 3.5.6.30 or higher
Runtime system	CODESYS Control Version 3.5.6.20 or higher
Supported Platforms/ Devices	CODESYS WinV3 and Raspberry-Pi
Additional requirements	Optical scanner to read data from electronic meter
Restrictions	Without a license key the software works in DEMO-Mode with the following limitations: - Storing the energy production, feed-in data on SD-Card is deaktivated - Data upload with FTP-Push is deaktivated - Feed-in managment is deaktivated
